Your position: Home > Cellular Antenna > Yagi Antenna

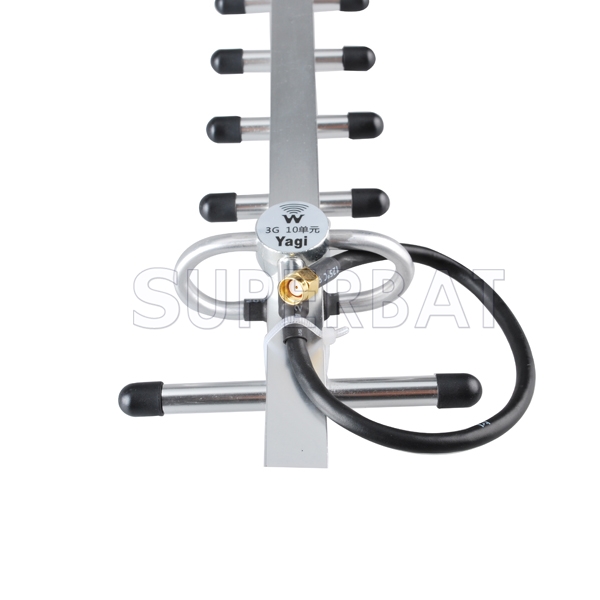

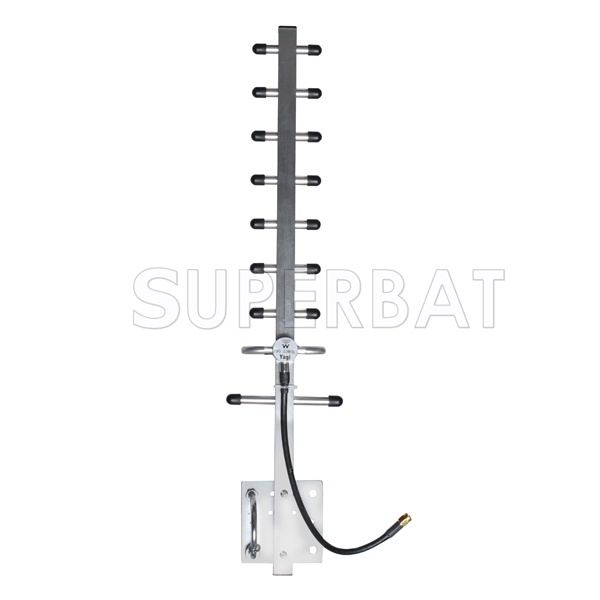

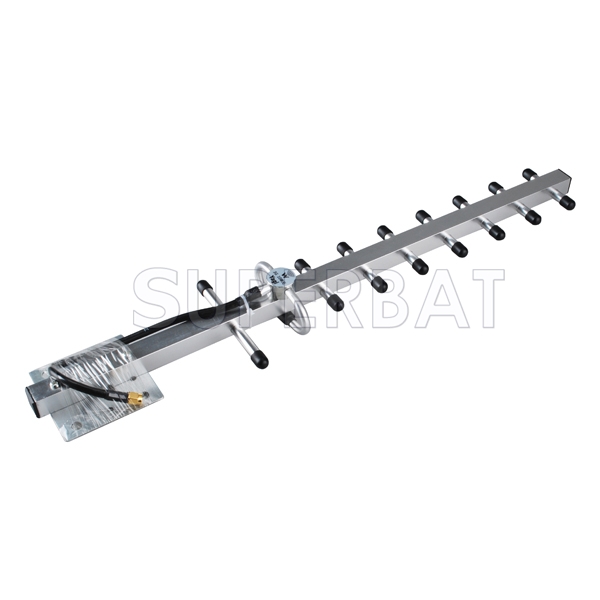

12DB 1990-2170 MHz 3G Directional Antennas Yagi Antenna RP-SMA Straig plug For 3G Wireless
Unit Price: $18.00
sku:3AY-1103-S02SP-120-20
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $18.00 $16.20 $14.58 $13.14 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Yagi Network: 3G/UMTS/CDMA2000 Antenna Frequency: 1990-2170MHz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Gain: 12dbi Radiation: Directional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 20cm Weight: 245g

Product Name: Yagi Antennas
Electrical specifications
Frequency Range-MHz: 1990-2170MHz
VSWR ≤1.5
Input Impedance-Ω: 50
Gain-dBi: 12dbi
Polarization: Vertical
F/B ratio-dB:
Horizontal Beamwidth -°: 54/48/40/36/30
Vertical Beamwidth -°: 48/40/36/32/30
Maximum Power -W: 50
Bandwidth-MHz: 100
Connector: RP SMA male straight Connector default

SMA/SSMB/CRC9/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147..and so on.,please give us notes if the other connector is chosen !

Mechanical Specifications
Dimensions-mm
Weight: 245g
Length-cm: 46.3
Mounting Mast Diameter-mm: Φ50-100
