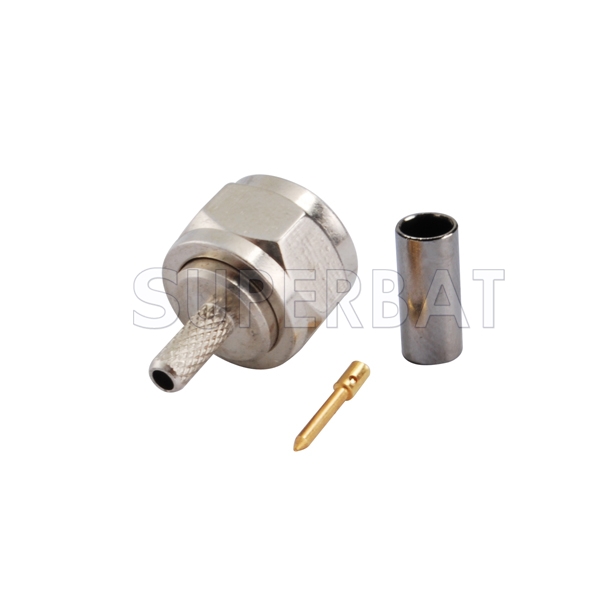

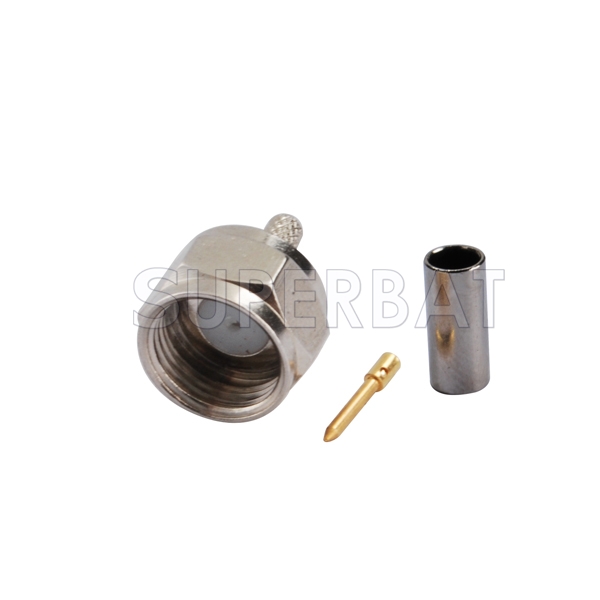

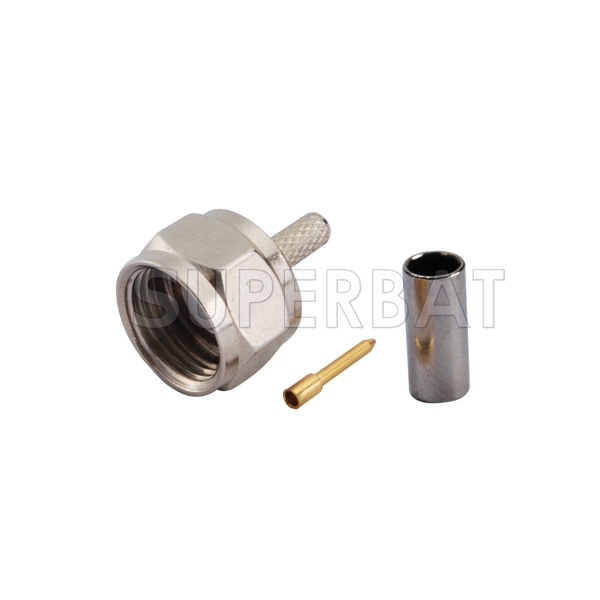

F Plug Male Connector Straight Crimp RG179
F Plug Male Connector Straight Crimp RG179
Unit Price: $1.00
sku:F01-SP179-41BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $1.00 $0.90 $0.82 $0.73 ASK
saving% 0% 10% 18% 27% -
Real Time Availability
Stock: 1948
Quantity: Units

Series: F Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: RG179 Body Style: Straight Impedance: 75 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel

The F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
F-Type is a 75 Ω connector featuring 30 dB return loss at 1GHz. Additionally, these connectors accept .022-.042 in. diameter conductors and comply with a 3/8-32 thread specification.
The F-Type connector is a threaded alternative to the slide-on G-Type connector.

Features and Benefits
Patent pending contact design provides truly cylindrical coaxial contact and provides superior RF performance and excellent insertion/withdrawal characteristics
30 dB return loss at 1GHz ensures high performance specification that outperforms competition
Multiple PCB mount packages: surface mount, edge mount, right angle and straight, meets many customer application needs
Accommodates .022-.043 in. diameter conductor sizes. One connector accommodates a wide range of cable sizes, reducing part numbers

Applications
Head End Equipment
Set Top Boxes
CATV
High Speed Cable Modems
CIMs
Hybrid Fiber Coax Networks
